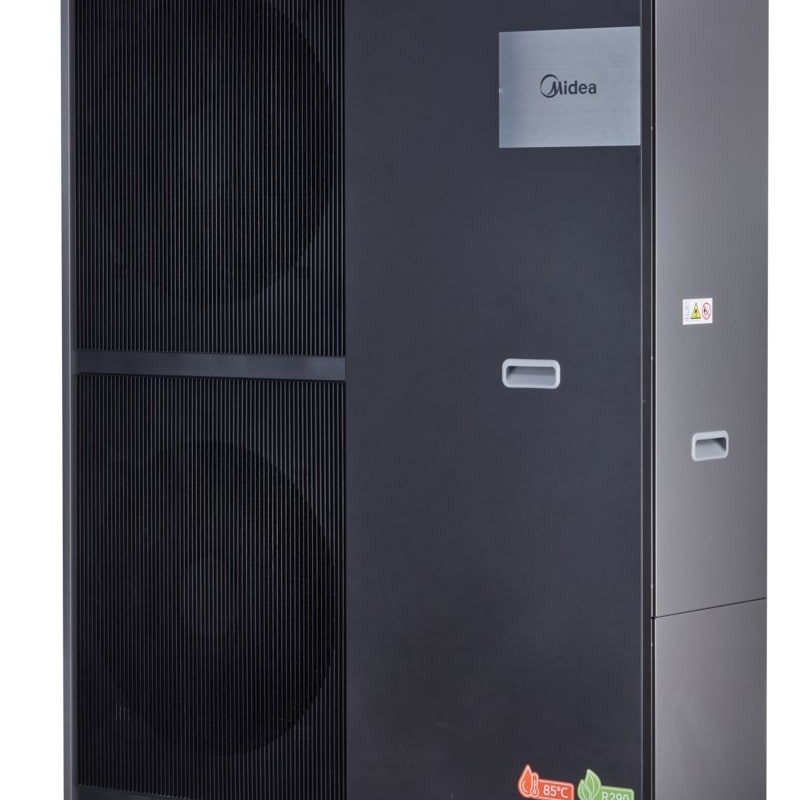

Mars Series MHC-V30WD2RN7 Heat Pump three phase

MIDEA MHC-V30WD2RN7, MARS series, High Temperature Heat Pump, Cooling capacity 30kW, Heating capacity 30kW, COP (A7/W35) 4.50, EER (A35/W18) 4.41 Operating temperature: Cooling from -15 to 48°C, Heating from -25 to 43°C, LWT heating range 25 to 85°C, Cooling 0 to 25°C, DHW from 20 to 75°C, R290 Gas, Energy class A+++, Weight 260kg, Dimensions 1384x1816x523 mm, Three-phase connection

Model			MHC-V30WD2RN7
Power supply		V/Ph/Hz	380-415/3/50
Heating (A7W35)	Capacity	kW	30,0
	Rated input	kW	6,67
	COP		4,50
Cooling (A35W18)	Capacity	kW	30,0
	Rated input	kW	6,80
	EER		4,41
SCOP	Water outlet at 35⁰C	ɳs	193,8%
		class	A+++
Compressor			Scroll Type
Outdoor fan	Motor type		DC brushless motor
	Number of fans		2
	Air flow	m³/h	10500
Air side heat exchanger			Finned tube
Water side heat exchanger			Plate heat exchanger
Connection of water side	Dimension	mm	DN32
	Method		Threaded connection
Water pump	Type		Canned-motor pump
	Max.pump head	m	12
Expansion vessel	Volume	L	5
	Charge pressure	Mpa	0,8
Safety valve		Mpa	0,3
Water flow range		m³/h	1,2-6,2
Refrigerant	Type (GWP)		R290
	Charged volume	kg	2,9
Throttle type			EEV
Net dimension (W×H×D)		mm	1384x1816x523
Packing dimension (W×H×D)		mm	1480x2000x570
Net/Gross weight		kg	260/285
Outdoor air temperature range	Cooling	⁰C	-15~48
	Heating	⁰C	-25~43
	DHW	⁰C	-25~43
Water setting temperature range	Cooling	⁰C	0~25
	Heating	⁰C	25~85
	DHW	⁰C	20~75
